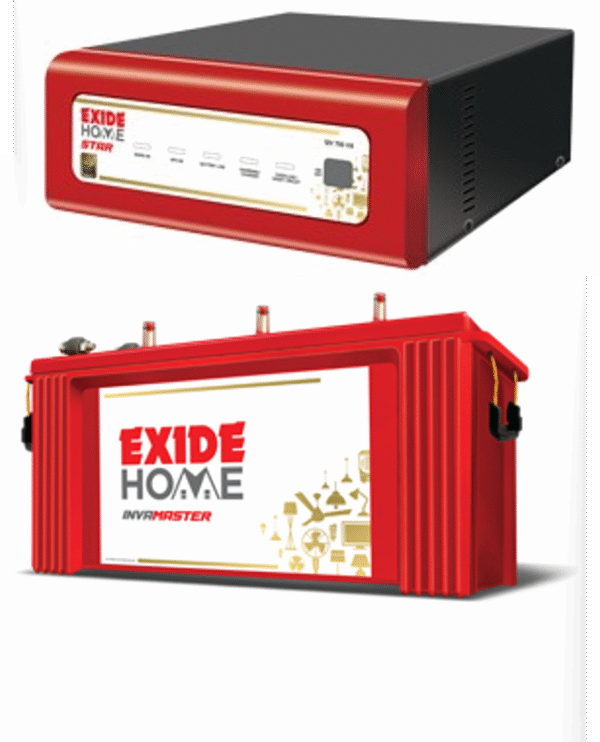

EXIDE STAR 900VA SINEWAVE + INVA MASTER 1000 BATTERY

EXIDE STAR 900VA SINEWAVE + INVA MASTER 1000 BATTERY

Original price was: ₹17,000.Current price is: ₹16,300.

Use pincode to check delivery info

Product Description

Technical Specifications of Exide Inverterz Star

Description STAR 12V 650VA STAR 12V 850VA STAR 12V 1050VA STAR 24V 1450VA
Output Voltage at No Load 220V ± 7V AC
Output Frequency 50Hz ± 1Hz
Output Wave Form Pure Sine Wave
Nominal Battery Voltage 12V DC 24V DC
Battery Low Cut Off 10.5V ± 0.2V DC 21.0V ± 0.4V DC

Charging Mode

Model STAR 12V 650VA STAR 12V 850VA STAR 12V 1050VA STAR 24V 1450VA
Maximum Charging Current (NC) 11Amps ± 1Amp 12Amp ± 1Amp 13Amp ± 1Amp 12Amp ± 1Amp
Maximum Charging Current (HC) 15Amps ± 1Amp 17Amp ± 1Amp 18Amp ± 1Amp 17Amp ± 1Amp
Boost Charging Voltage 14.4V ± 0.2V DC 28.8V ± 0.4V DC
Trickle Charging Voltage 13.7V ± 0.2V DC 27.4V ± 0.4V DC
Charging Current at 120V Mains Input 8-10 Amp Charging Current*
Charging Over Time Mains to Back-up (@ UPS Mode) ? 10 msec
Charging Over Time Back-up to Mains (@ UPS Mode) ? 10 msec
Input Voltage Range (@ UPS Mode) 180V – 270V ± 10V AC
Change Over Time Mains to Back-up (@ Normal Mode) ? 40 msec
Change Over Time Back-up to Mains (@ Normal Mode) ? 10 msec
Input Voltage Range (@ Normal Mode) 90V – 300V ± 10V AC
